DC charging pile、AC charging pile、Flexible shared charging pile、Charging adapter and related accessories

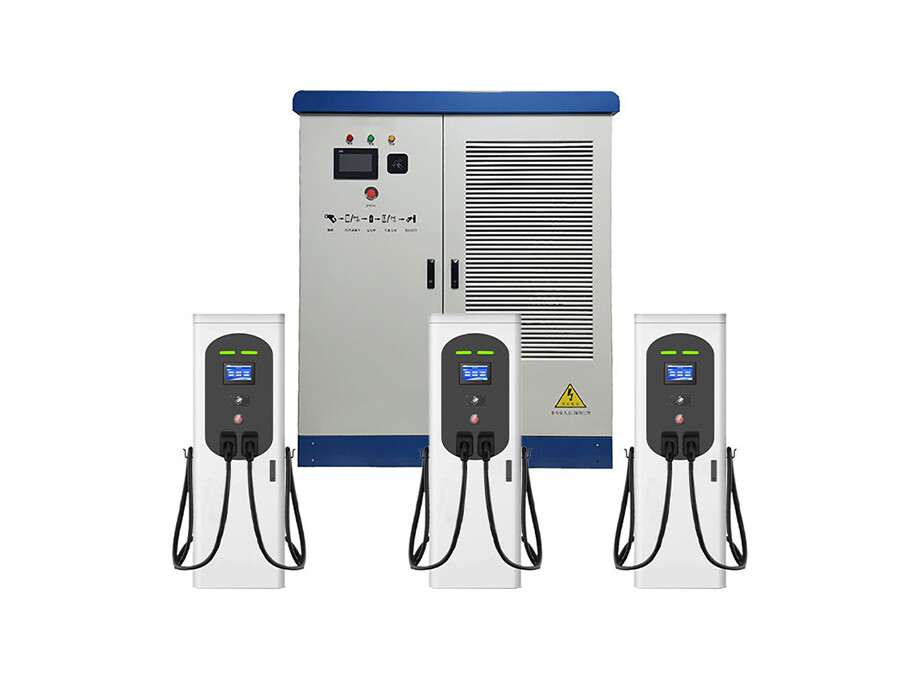

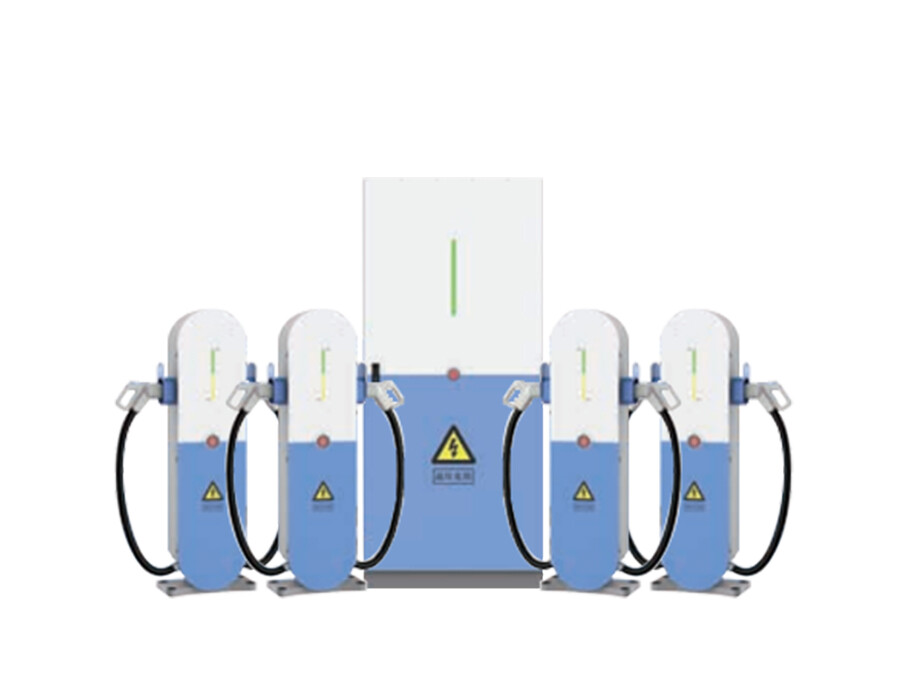

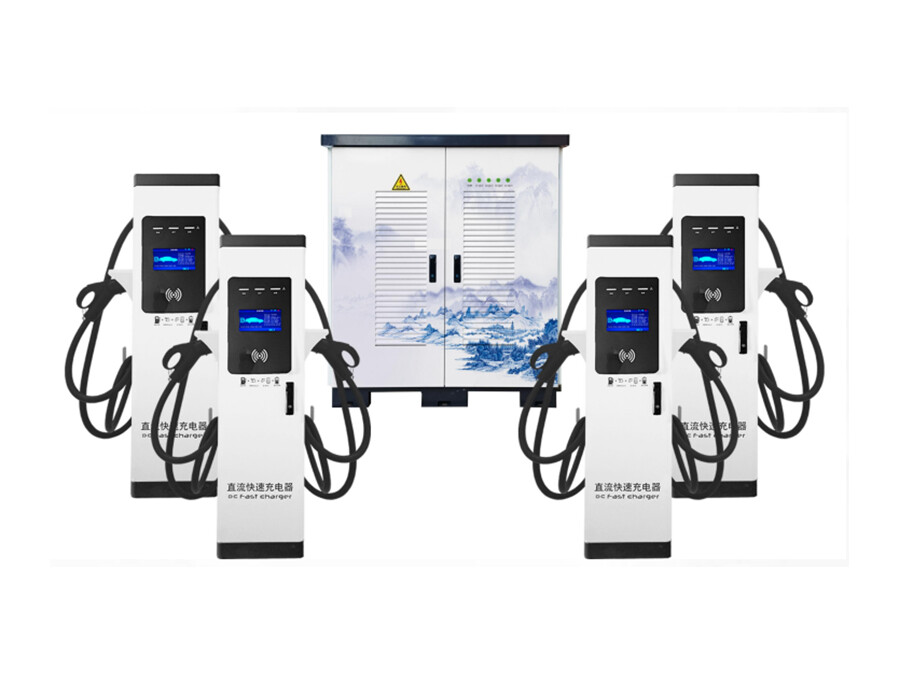

480kW Flexible shared charging pile
480kW Flexible shared charging pile
480kW Flexible shared charging pile
480kW Flexible shared charging pile
480kW Flexible shared charging pile
480kW Flexible shared charging pile
480kW Flexible shared charging pile
480kW Flexible shared charging pile
480kW Flexible shared charging pile
Overview
Large output power, high efficiency, fast charging speed. Wide output voltage range. Split design can effectively reduce noise and enhance customer experience.
Charging pile details

Check the specific information of the charging pile below to help you better purchase the product that suits you

Charging pile specifications

：Model：JC-DC-CDD-480kW 480kW Flexible shared charging pileConstant power  output voltage range：DC 300-1000VStorage  temperature：-40℃~+70℃
Installation mode：Floor cabinet typeInsulation  resistance：≥100MQΩHumidity：5%~95% non-condensing
Total output power：480kWDimensions （W×D×H，mm）：2042×1702×805 (The latest model shall prevail）Altitude：≤2000m
Maximum output current  of the machine：1454AWeight：1600~2600kg（Including the weight of the splitter,  subject to the latest model）Applicable  environment：Indoor/Outdoor
Maximum output current  of a single channel：250ACharging mode：Credit card/ QR code scanning payment, etcProtection grade：IP54
Input voltage：AC 380V±15%Man-machine  interface：7 inch color touch displayCooling mode：Natural air cooling
Frequency：50Hz±10%Cable Length：5m（Can be customized）

Input current：≤960AOperating  temperature：-20°C~ +50°C，Derating works above 50 ° C

Charging pile introduction

Efficient, convenient and  low noise：Large output power, high efficiency, fast  charging speed. Wide output voltage range.  Split design can effectively reduce noise and  enhance customer experience.
Safety protection：With lightning protection, over temperature,  over and under voltage, overload, short circuit,  leakage, battery anti-reverse connection and  other protection functions.
Strong compatibility and wide adaptability：Compatible with multiple cloud platforms,  mainstream charging modules.
Split design, flexible  power distribution：：A host can be divided into 4 guns (6 guns, 8  guns) terminal, power can be automatically  flexible distribution, automatic distribution on  demand.
Application Scenario

In Residences

Having residential EV charging stations in their garages is a must for the eco-friendly neighborhoods of tomorrow.



At the Workplace

Easy access to workplace EV chargers incentivizes the use of EVs and better employee satisfaction.



In Parking Complex

An excellent and strategic location for your EV charging station, giving accessibility to EV drivers.


At Hotel

From hotels to resorts, the addition of smart EV chargers can attract more customers and establish a stronger brand.
