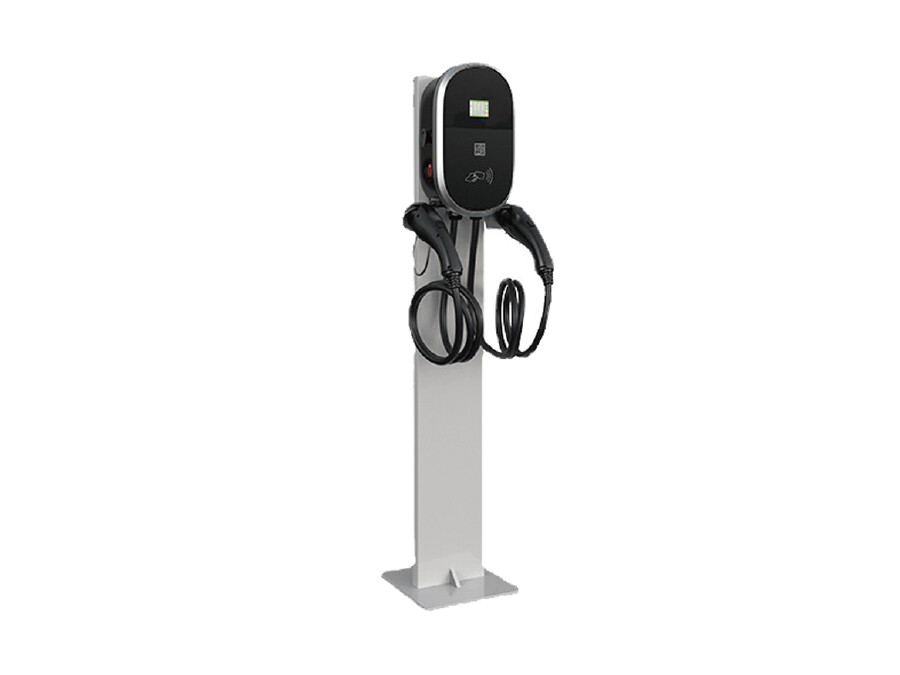

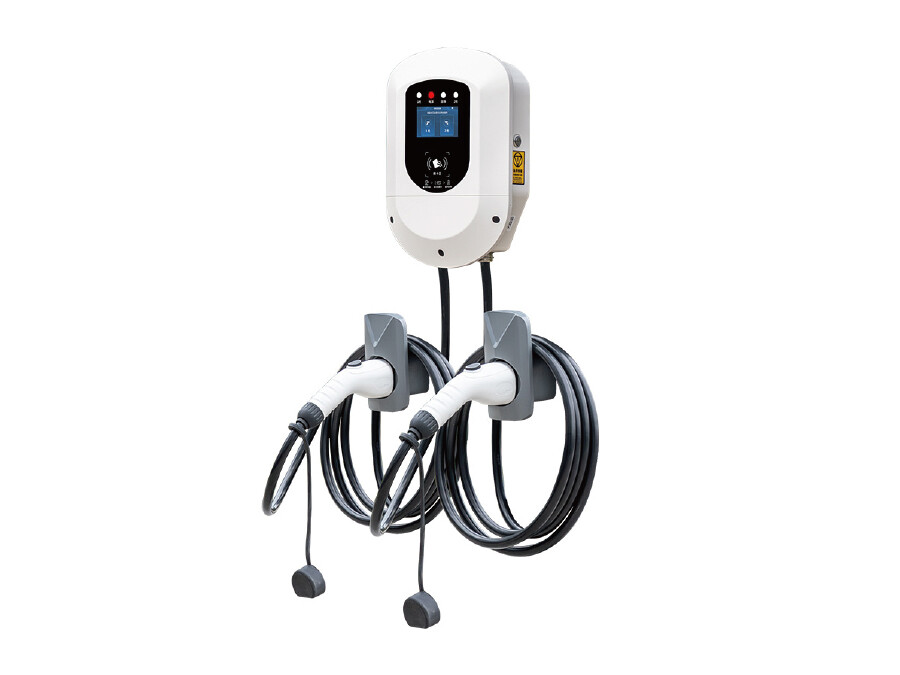

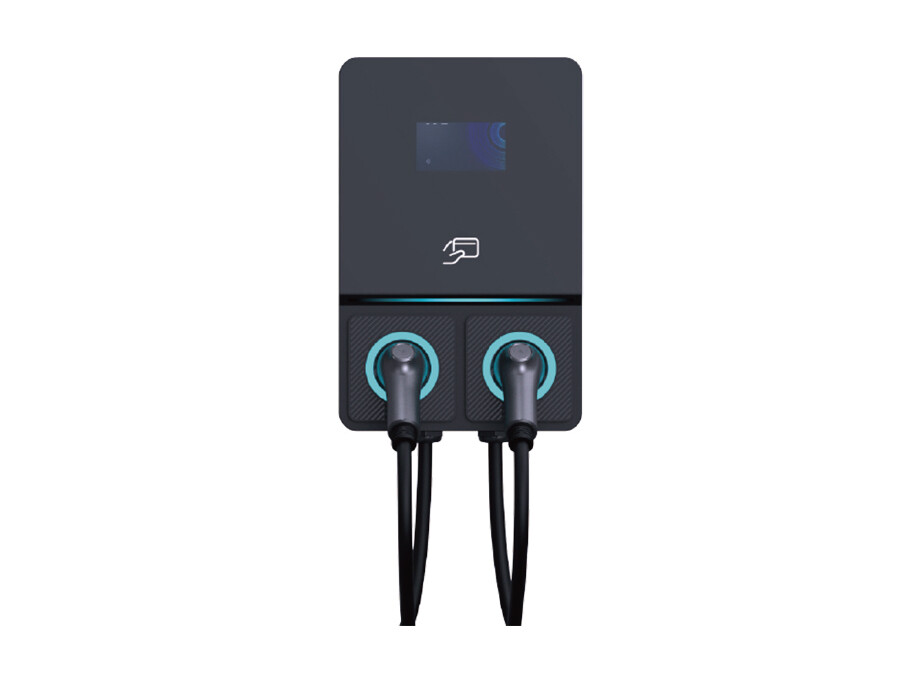

Double-gun wall-mounted AC charging pile14kW/22kW

Stylish appearance, acrylic \ tempered glass material panel, LCD display, easy to install and operate.

Check the specific information of the charging pile below to help you better purchase the product that suits you



Charging pile specifications

Model：	JC-AC-SQBG-14kW/22kW Double-gun wall-mounted AC charging pile14kW/22kW	Cable Length：	5m（Can be customized）
Installation mode：	Wall-mounted	International standard：	NBT33008、NBT33002、IEC61851-21-2-2:2021
Input voltage：	AC 220V±20%/AC 380V±20%	Operating temperature：	-20℃~+50℃
Frequency：	50Hz±10%	Humidity：	5%~95% non-condensing
Rated Power：	14kW/22kW	Storage temperature：	-40℃~+70℃
Rated current：	32A	Altitude：	≤2000m
Dimensions （W×D×H，mm）：	425×300×117 (The latest model shall prevail）	Protection grade：	IP54
Charging mode：	Plug and charge/swipe card/scan QR code, etc	MTBF：	30,000 hours
Operation mode：	No offline charging, offline charging, online charging	Cooling mode：	Natural air cooling
Payment method：	Credit card payment, code payment, etc



Charging pile introduction

Exquisite design：	Stylish appearance, acrylic \ tempered glass material panel, LCD display, easy to install and operate.
Widely used：	Suitable for slow charging stations, office buildings, large shopping malls, residential areas, outdoor parking lots, hotels and other public places vehicle charging.
Safe and reliable：	Ip54 protection grade, moisture-proof, mildew, waterproof, dustproof, flame retardant. With over temperature, over and under voltage, overload, short circuit, leakage and other protection functions.
