Wall-mounted/column-mounted AC charging pile-XuZhou Vast Advantage Group Co., Ltd.

DC charging pile、AC charging pile、Flexible shared charging pile、Charging adapter and related accessories







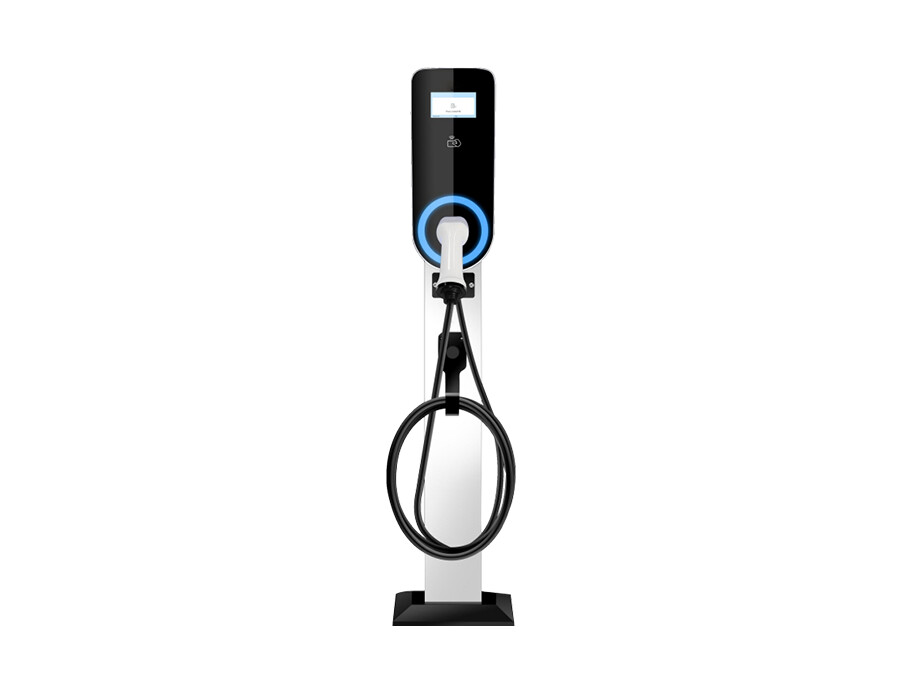

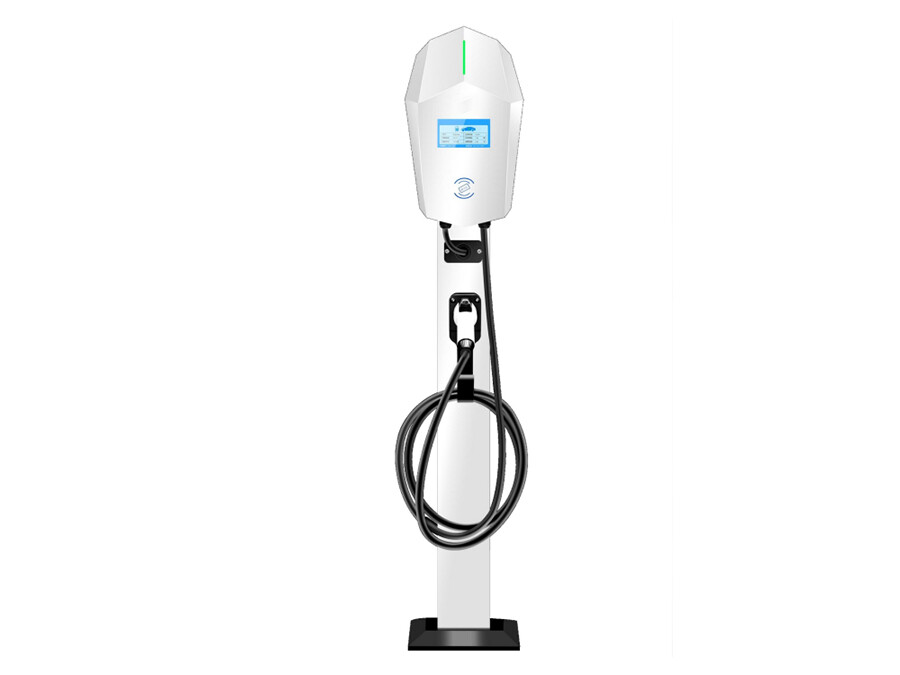

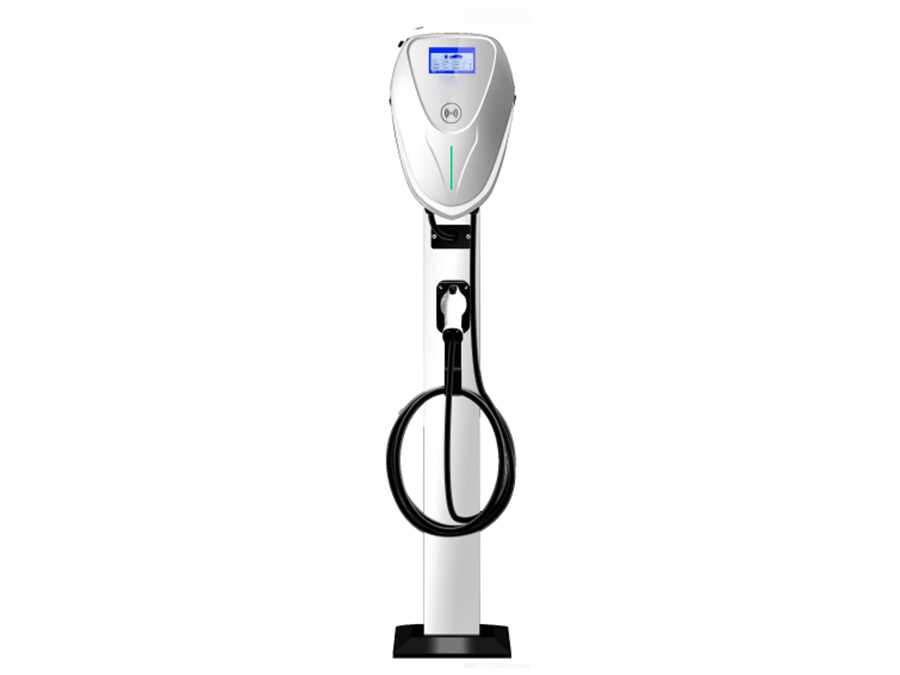

Wall-mounted/column-mounted AC charging pile

Stylish appearance, acrylic \ tempered glass
material panel, LCD display, easy to install and
operate.

Check the specific information of the charging pile below to help you better purchase the product that suits you



Charging pile specifications

Model:	JC-AC-BG-3.5kW/7kW/11kW/14kW/22kW Wall-mounted AC charging pile 3.5kW/7kW/11kW/14kW/22kW	Payment method：	Credit card payment, code payment, etc
Installation mode:	Wall-mounted	International standard：	NBT33008、NBT33002、IEC61851-21-2-2:2021
Input voltage:	AC 220V±20%/AC 380V±20%	Operating temperature：	-20℃~+50℃
Frequency:	50Hz±10%	Humidity：	5%~95% non-condensing
Rated current:	16A /32A	Storage temperature：	-40℃~+70℃
Dimensions （W×D×H，mm）:	390×260×125 (The latest model shall prevail）	Altitude：	≤2000m
Cable Length：	5m（Can be customized）	Protection grade:	IP54
Man-machine interface：	4.3-inch display/indicator	Decibel of sound:	≤60dB



Charging pile introduction

Exquisite design:	Stylish appearance, acrylic \ tempered glass material panel, LCD display, easy to install and operate.
Widely used:	Suitable for slow charging stations, office buildings, large shopping malls, residential areas, outdoor parking lots, hotels and other public places vehicle charging.
Safe and reliable:	IP54 protection grade, moisture-proof, mildew, waterproof, dustproof, flame retardant. With over temperature, over and under voltage, overload, short circuit, leakage and other protection functions.
