DC charging pile、AC charging pile、Flexible shared charging pile、Charging adapter and related accessories

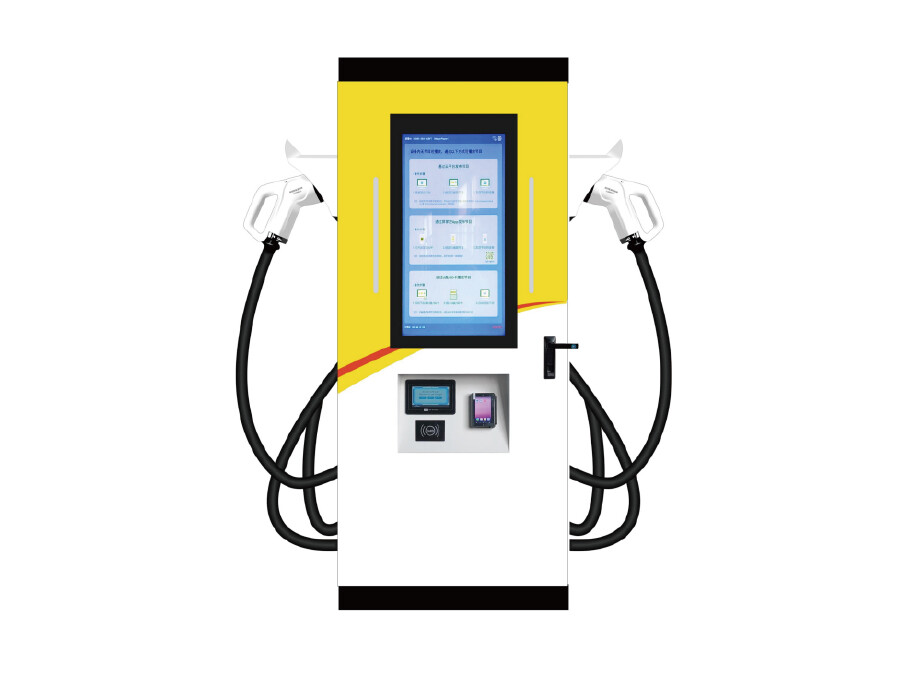

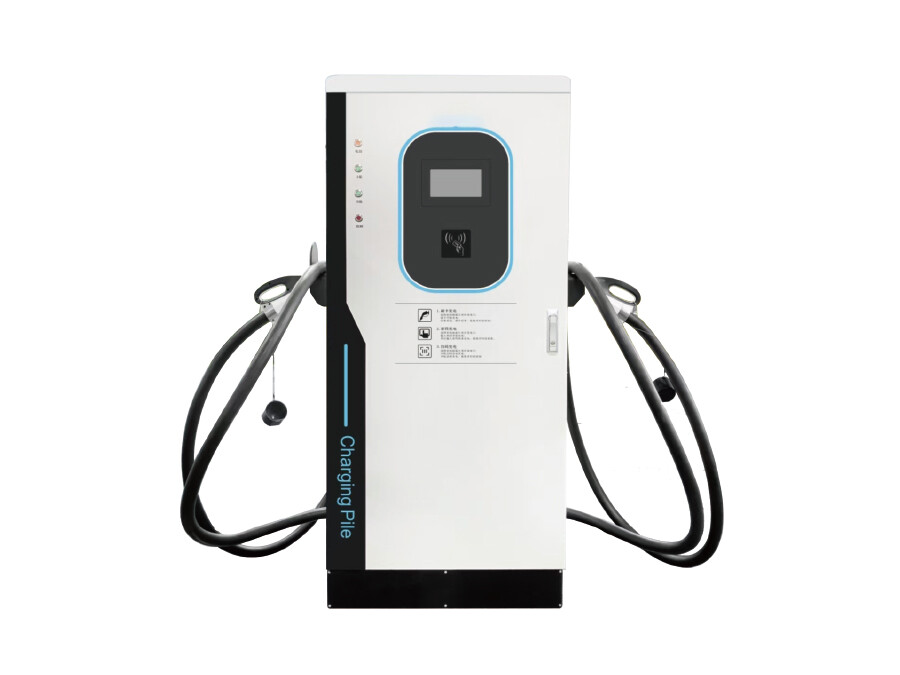

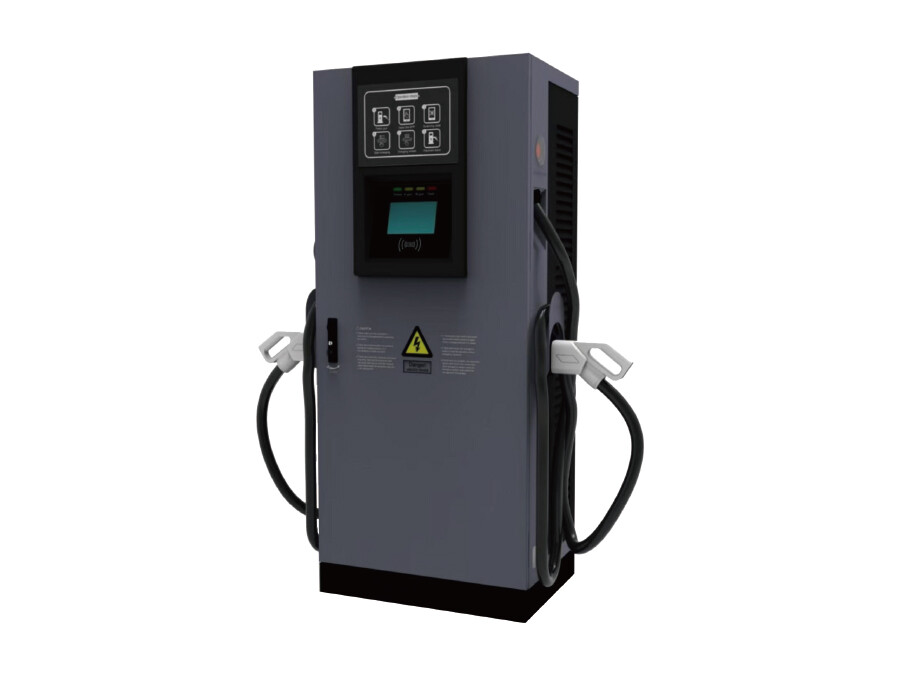

Dual-gun DC charging pile 240kW
Overview
The new and old international compatible design can automatically configure the charging voltage according to the needs of different models to meet the charging needs of different models.
Charging pile details

Check the specific information of the charging pile below to help you better purchase the product that suits you

Charging pile specifications

Model:JC-DC-SQ-240kW Dual-gun DC charging pile 240kWCharging mode:Credit card/ QR code scanning payment, etc
Installation mode:Floor cabinet typeMan-machine  interface:7 inch color touch display
Total output power:240kWCable Length:5m(Can be customized)
Maximum output current  of the machine:500ACharging mode:Full power, AB equal charge, alternate charge
Power  distribution mode:Single gun full power 240kW, both guns charged 120kWOperating  temperature:-20℃~+50℃
Input voltage:AC 380V±20%Storage  temperature:-40℃~+70℃
Frequency:50Hz±10%Humidity:5%~95% non-condensing
Output  voltage range:DC 150~750VAltitude:≤2000m
Insulation  resistance:≥100MΩApplicable  environment:Indoor/Outdoor
Dimensions (W×D×H,mm)1900×800×650 (The latest model shall prevail)Protection grade:IP54

Charging pile introduction

Universal compatibility:The new and old international compatible  design can automatically configure the  charging voltage according to the needs of  different models to meet the charging needs of  different models.
High efficiency:Using the new charging rectifier module  technology, the power factor is up to 0.99, and  the efficiency is up to 95%. Wide output voltage  range, 150-750V continuous adjustable, wide  voltage constant power output (400-750V  constant power).
Intelligent regulation:Integrated Ethernet, 4G communication mode,  communication with background monitoring at  any time, transmission status and related data,  highlighted 7 inch LCD display, easy to operate.
Safe and reliable:Ip54 protection grade, moisture-proof, mildewproof, waterproof, dustproof, flame retardant.  With over temperature, over and under voltage,  overload, short circuit, leakage, battery anti-reverse connection and other protection functions
Application Scenario

In Residences

Having residential EV charging stations in their garages is a must for the eco-friendly neighborhoods of tomorrow.



At the Workplace

Easy access to workplace EV chargers incentivizes the use of EVs and better employee satisfaction.



In Parking Complex

An excellent and strategic location for your EV charging station, giving accessibility to EV drivers.


At Hotel

From hotels to resorts, the addition of smart EV chargers can attract more customers and establish a stronger brand.
