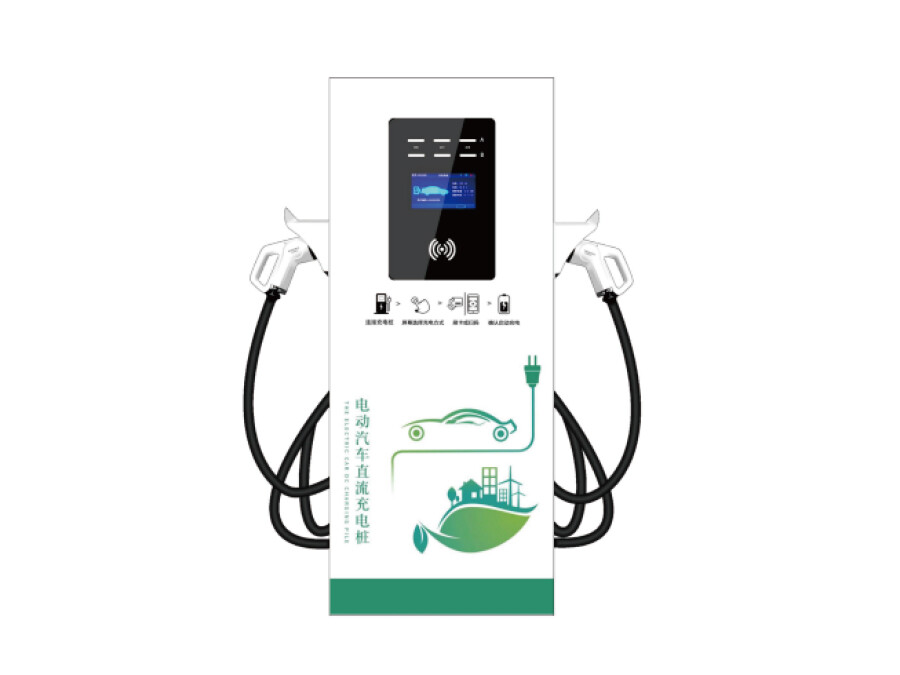

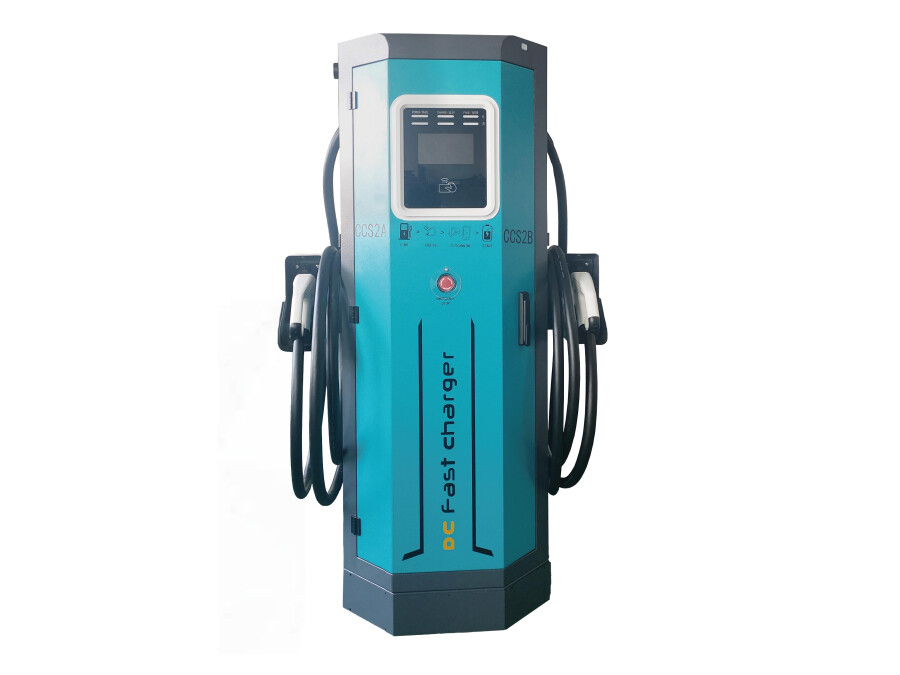

Dual-gun DC charging pile 60kW/120kW
Dual-gun DC charging pile 60kW/120kW
Dual-gun DC charging pile 60kW/120kW
Dual-gun DC charging pile 60kW/120kW
Dual-gun DC charging pile 60kW/120kW
Dual-gun DC charging pile 60kW/120kW
Dual-gun DC charging pile 60kW/120kW
Dual-gun DC charging pile 60kW/120kW
Dual-gun DC charging pile 60kW/120kW
Overview
The new and old international compatible design can automatically configure the charging voltage according to the needs of
different models to meet the charging needs of different models.
Charging pile details

Check the specific information of the charging pile below to help you better purchase the product that suits you

Charging pile specifications

LModel：JC-DC-SQ-60kW/120kW Dual-gun DC charging pile 60kW/120kWInsulation  resistance：≥100MΩHumidity:5%~95% non-condensing
Installation mode：Floor cabinet typeDimensions （W×D×H，mm）:1800×750×550 (The latest model shall prevail）Altitude:≤2000m
Total output power：60kW/120kWCharging mode:Credit card/ QR code scanning payment, etcApplicable  environment:Indoor/Outdoor
Maximum output current  of the machine：125A/250AMan-machine  interface:7 inch color touch displayProtection grade:IP54
Power  distribution mode：Single gun full power 60kW, dual-gun charge 30kW/ Single gun full power 120kW, dual-gun charge 60kWCable Length:5m（Can be customized）Cooling mode:Natural air cooling
Input voltage：AC 380V±20%Charging mode:Full power, AB equal charge, alternate charge

Frequency：50Hz±10%Operating  temperature:-20℃~+50℃

Output  voltage range：DC 150~750VStorage  temperature:-40℃~+70℃


Charging pile introduction

Universal compatibility:The new and old international compatible  design can automatically configure the  charging voltage according to the needs of  different models to meet the charging needs of  different models.
High efficiency:Using the new charging rectifier module  technology, the power factor is up to 0.99, and  the efficiency is up to 95%. Wide output voltage  range, 150-750V continuous adjustable, wide  voltage constant power output (400-750V  constant power).
Intelligent regulation:Integrated Ethernet, 4G communication mode,  communication with background monitoring at  any time, transmission status and related data,  highlighted 7 inch LCD display, easy to operate.
Safe and reliable:Ip54 protection grade, moisture-proof, mildewproof, waterproof, dustproof, flame retardant.  With over temperature, over and under voltage,  overload, short circuit, leakage, battery anti-reverse connection and other protection  functions.
Application Scenario
In ResidencesHaving residential EV charging stations in their garages is a must for the eco-friendly neighborhoods of tomorrow.At the WorkplaceEasy access to workplace EV chargers incentivizes the use of EVs and better employee satisfaction.In Parking ComplexAn excellent and strategic location for your EV charging station, giving accessibility to EV drivers.At HotelFrom hotels to resorts, the addition of smart EV chargers can attract more customers and establish a stronger brand.
