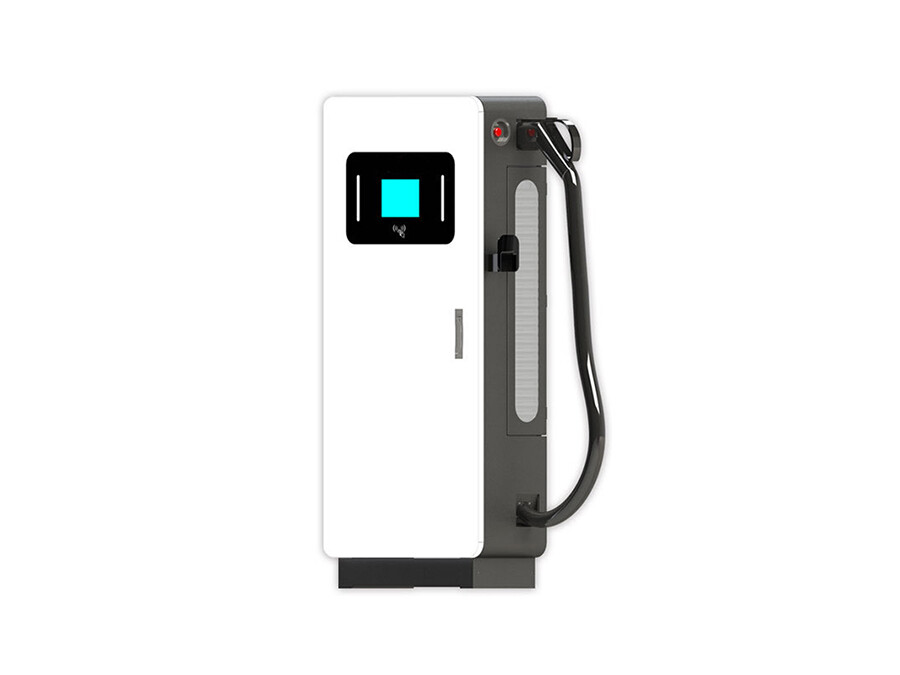

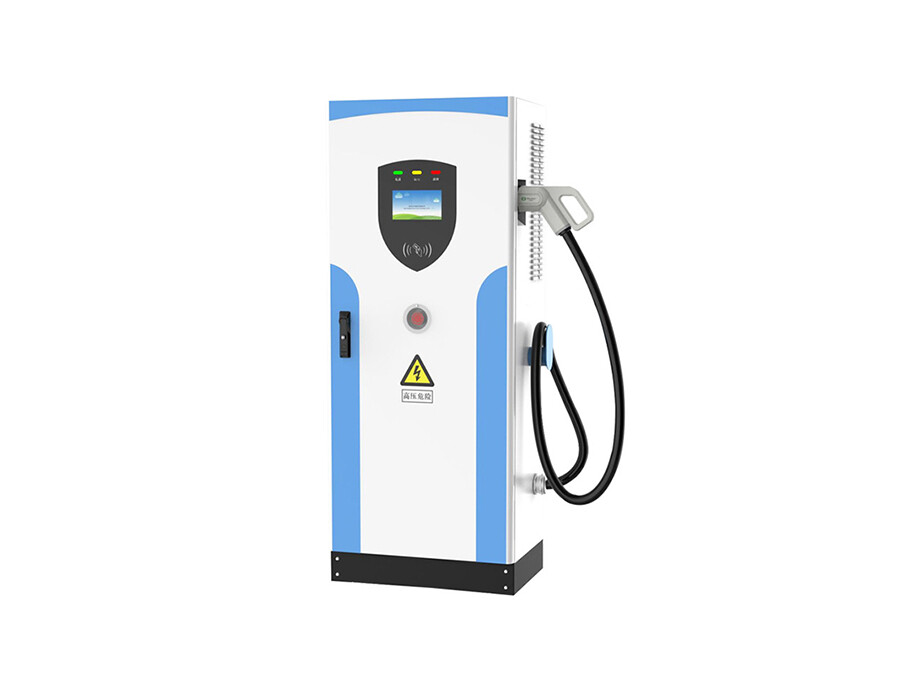

Single-gun DC charging pile 60kW/120kW
Overview
The new and old international compatible design can automatically configure the charging voltage according to the needs of
different models to meet the charging needs of different models.
Charging pile details

Check the specific information of the charging pile below to help you better purchase the product that suits you

Charging pile specifications

 Model:JC-DC-60kW/120kW Single-gun DC charging pile 60kW/120kWMan-machine  interface: 7 inch color touch display
Installation mode:Floor cabinet typeCable Length:5m(Can be customized)
Rated Power:60kW/120kWOperating  temperature:-20℃~+50℃
Rated current:125A/250AHumidity:5%~95% non-condensing
Input voltage:AC 380V±20%Altitude:≤2000m
Frequency:50Hz±10%Applicable  environment:Indoor/Outdoor
Output  voltage range:DC 150~750VProtection grade:IP54
Insulation  resistance:≥100MΩDecibel of sound:≤60dB
Dimensions (W×D×H,mm):1700×750×400(The latest model shall prevail)Cooling mode:Natural air cooling
Charging mode:Credit card/ QR code scanning payment, etc


Charging pile introduction


Universal compatibility:The new and old international compatible  design can automatically configure the  charging voltage according to the needs of  different models to meet the charging needs of  different models.
High efficiency:Using the new charging rectifier module  technology, the power factor is up to 0.99, and  the efficiency is up to 95%. Wide output voltage  range, 150-750V continuous adjustable, wide  voltage constant power output (400-750V  constant power).
Intelligent regulation:Integrated Ethernet, 4G communication mode,  communication with background monitoring at  any time, transmission status and related data,  highlighted 7 inch LCD display, easy to operate.
Safe and reliable:Ip54 protection grade, moisture-proof, mildewproof, waterproof, dustproof, flame retardant.  With over temperature, over and under voltage,  overload, short circuit, leakage, battery anti-reverse connection and other protection  functions.


Application Scenario

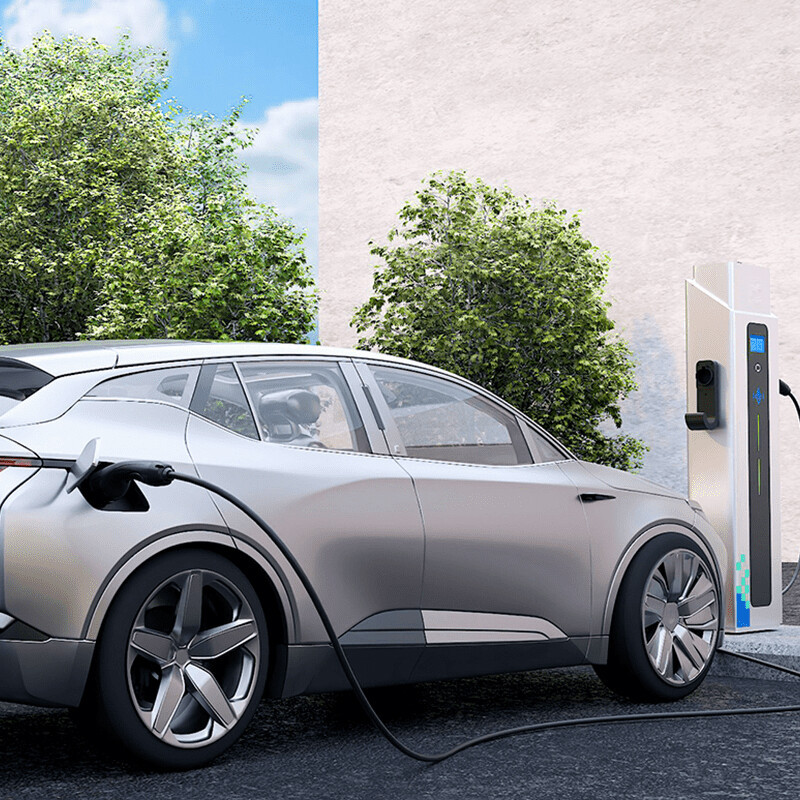

In Residences

Having residential EV charging stations in their garages is a must for the eco-friendly neighborhoods of tomorrow.

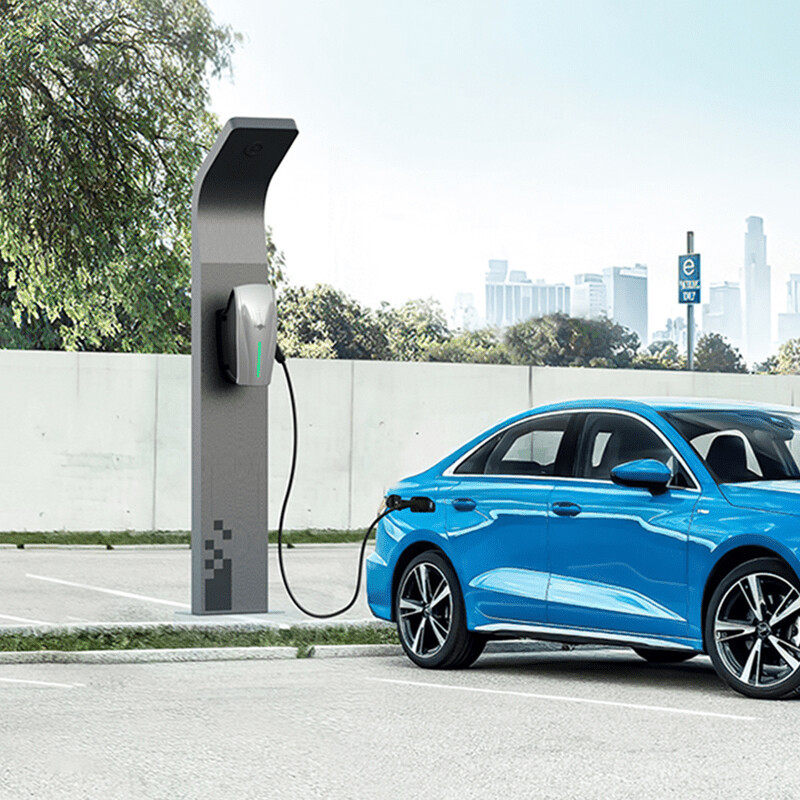

At the Workplace

Easy access to workplace EV chargers incentivizes the use of EVs and better employee satisfaction.

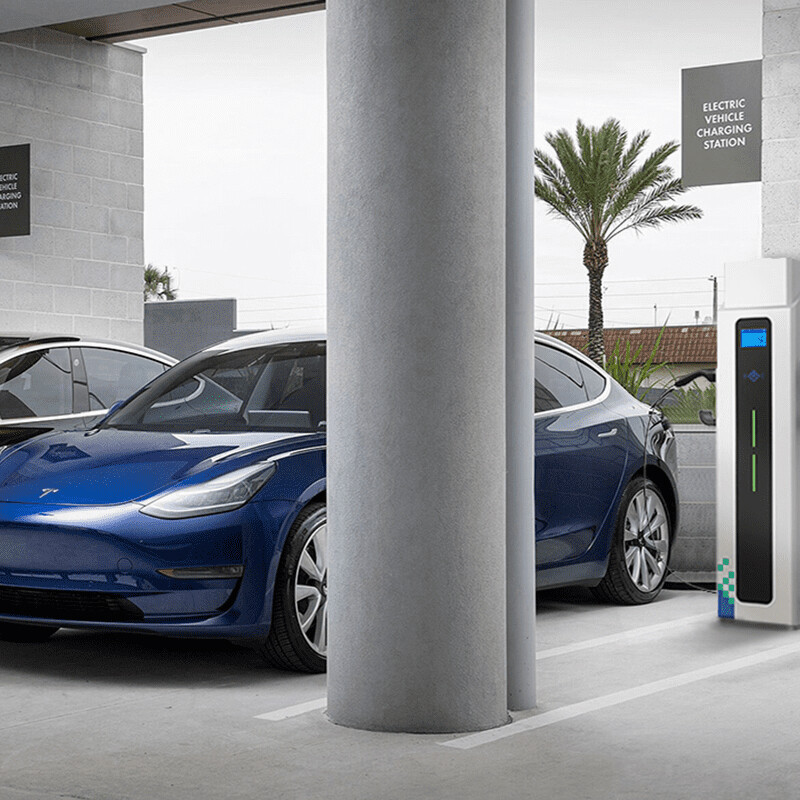

In Parking Complex

An excellent and strategic location for your EV charging station, giving accessibility to EV drivers.

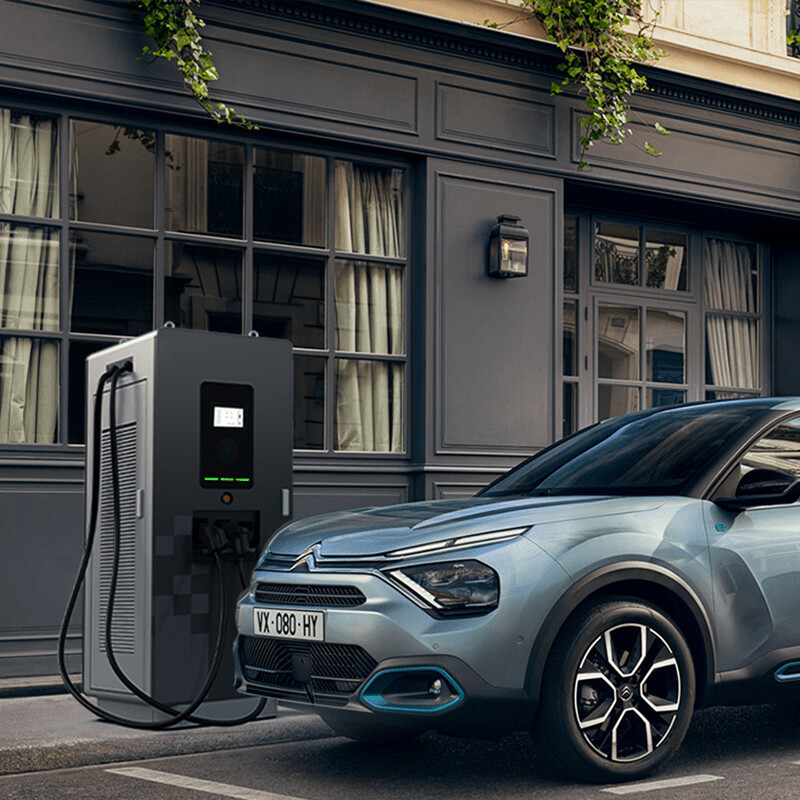

At Hotel

From hotels to resorts, the addition of smart EV chargers can attract more customers and establish a stronger brand.
