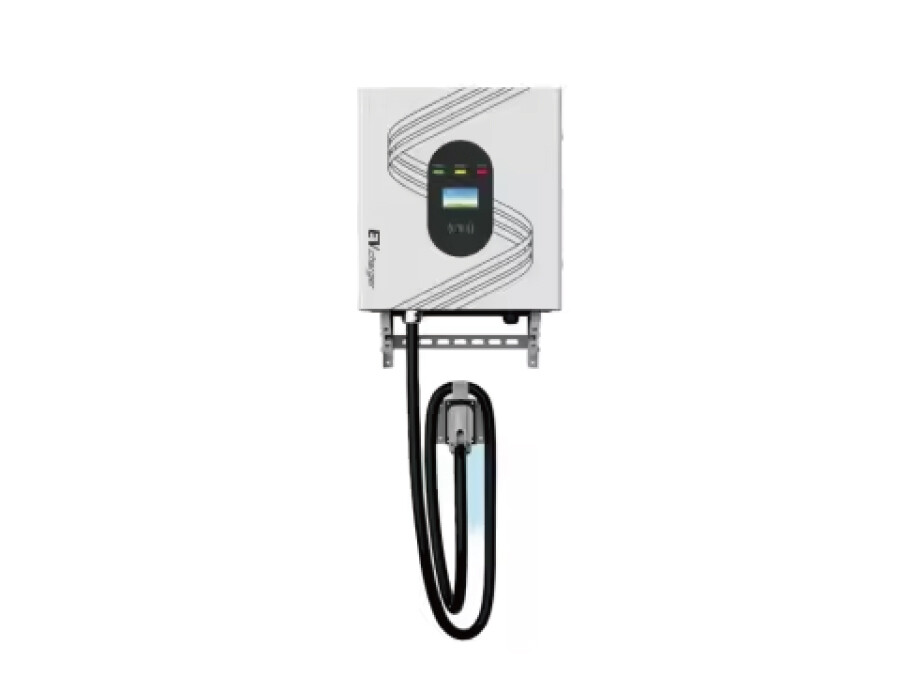

Wall-mounted DC charging pile 20kW

Overview

The new and old international compatible design can automatically configure the charging voltage according to the needs of
different models to meet the charging needs of different models.

Charging pile details

Check the specific information of the charging pile below to help you better purchase the product that suits you



Charging pile specifications

Model：	JC-DC-BG-20kW Wall-mounted DC charging pile 20kW	Man-machine interface:	4.3-inch display/indicator
Installation mode：	Wall-mounted (column version can be customized)	Cable Length:	5m（Can be customized）
Input voltage：	AC 380V±20%	Operating temperature:	-20℃~+50℃
Frequency：	50Hz±10%	Humidity:	5%~95% non-condensing
Output voltage range：	DC 150~750V	Altitude:	≤2000m
Rated Power：	20kW	Applicable environment:	Indoor/Outdoor
Rated current：	63A	Protection grade:	IP54
Dimensions （W×D×H，mm）：	600×450×210 (Column not included, subject to the latest model）	Decibel of sound:	≤60dB
Charging mode：	Plug and charge/swipe card/scan QR code, etc	Cooling mode:	Natural air cooling
Charging mode：	Credit card/ QR code scanning payment, etc



Charging pile introduction

Universal compatibility:	The new and old international compatible design can automatically configure the charging voltage according to the needs of different models to meet the charging needs of different models.
High efficiency:	Using the new charging rectifier module technology, the power factor is up to 0.99, and the efficiency is up to 95%. Wide output voltage range, 150-750V continuous adjustable, wide voltage constant power output (400-750V constant power).
Intelligent regulation:	Integrated Ethernet, 4G communication mode, communication with background monitoring at any time, transmission status and related data, highlighted 4.3 inch LCD display, easy to operate.
Safe and reliable:	Ip54 protection grade, moisture-proof, mildewproof, waterproof, dustproof, flame retardant. With over temperature, over and under voltage, overload, short circuit, leakage, battery anti-reverse connection and other protection functions.
